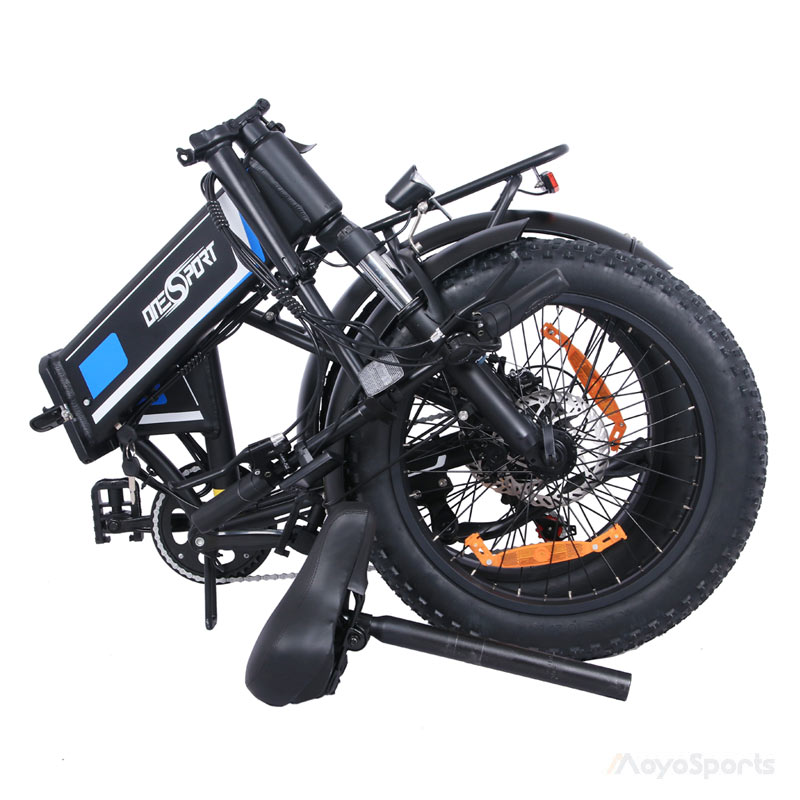

The lightweight folding electric bike features an ultra-lightweight yet strong aluminum alloy frame that can quickly fold and be stored in the trunk of a car or at home. It's easy to carry, allowing you to start your cycling trip at any time. this lightweight foldable electric bike quipped with adjustable seats, handlebars, and handlebars, as well as removable batteries, it can adapt to people of different heights and weights, providing you with a comfortable experience.
The best lightweight folding electric bike quipped with 20″x4.0 strong anti slip tire, provide you with excellent traction。You can easily ride over gravel, rain, dirt, sand and enjoy the ultimate e-bike adventure. just turn the thumb throttle to accelerate, which is very convenient.
The mechanical front and rear disc-brake design provides reliable braking force and safety. The professional 7-speed transmission system provides a variety of speed options. The lightweight foldable ebike is equipped with a shock-absorbing front fork and premium rear shock absorber, ensuring a smoother ride on hillsides, downhill, and uneven roads. It's suitable for mountain biking and urban cycling and commuting.
Outlook&Dimension
Name
Specification
Parameter:
Standard Version
Body Material:
Aluminum alloy
Color:
Matte Black
Unfolding Size:
1650mm*580mm*1160mm
Folding Size:
920mm*500mm*800mm
Hub Form:
Spoke wheel
Wheel Size:
20 inches
Package Size:
1430mm*300mm*700mm
Performance Parameters
Name
Specification
Gross/Net:
28.4/33KG
Maximum Load:
120kg
Maximum Speed:
25Km/h(15.6mph)
Mileage:
35km max rang in electric mode(21.8mile)
Maximum Climbing Angle:
25 degree
Proper Temperature:
-10°C-45 °C (14℉-113℉)
Waterproof Level:
IP54
Electrical Specifications
Name
Specification
Battery Type:
18650 lithium ion power battery
Battery Capacity:
12AH
Battery Rated Voltage:
48V
Motor Rated Power :
500W
Motor Form:
Assist mode
Motor Type:
20 inch/high speed gear/ Integrated wheel
brushless motor
Motor Rated No-Load Speed:
380±10r/min
Charger Output:
54.6V 2.0A
Charger Input:
100~240V 50/60Hz 3.0A
Undervoltage Protection Value:
39V
Overcurrent Protection Value:
15A+1A
Charging Time:
5-6 hours
Features
Name
Specification
Instrument Display:
Multifunctional LCD screen
Front Lighting:
YES
Braking Method:
Front disc brake + Rear disc brake
Tire Specifications:
Pneumatic tires
Tire: 20x4.0
Air Valve:20x4.0 The inner tube valve is AV
Front Fork:
Shock fork
Gear:
7 Speeds transmission
Remarks:The factors, including Battery power capacity, load, tire pressure, road
conditions, chain and lubrication between wheel and axle, etc.will affect the
maximum speed; the cruising distance indicated in this manual file is the test result
from the riding test conducted uninterruptedly with load of 60kg, at the speed of 15-
25km/h, and on the flat and hardened road surface, from full charge to full power
consumption.; Driving habits, temperature, load, tire pressure, road condition and
other factors will affect the actual cruising distance.

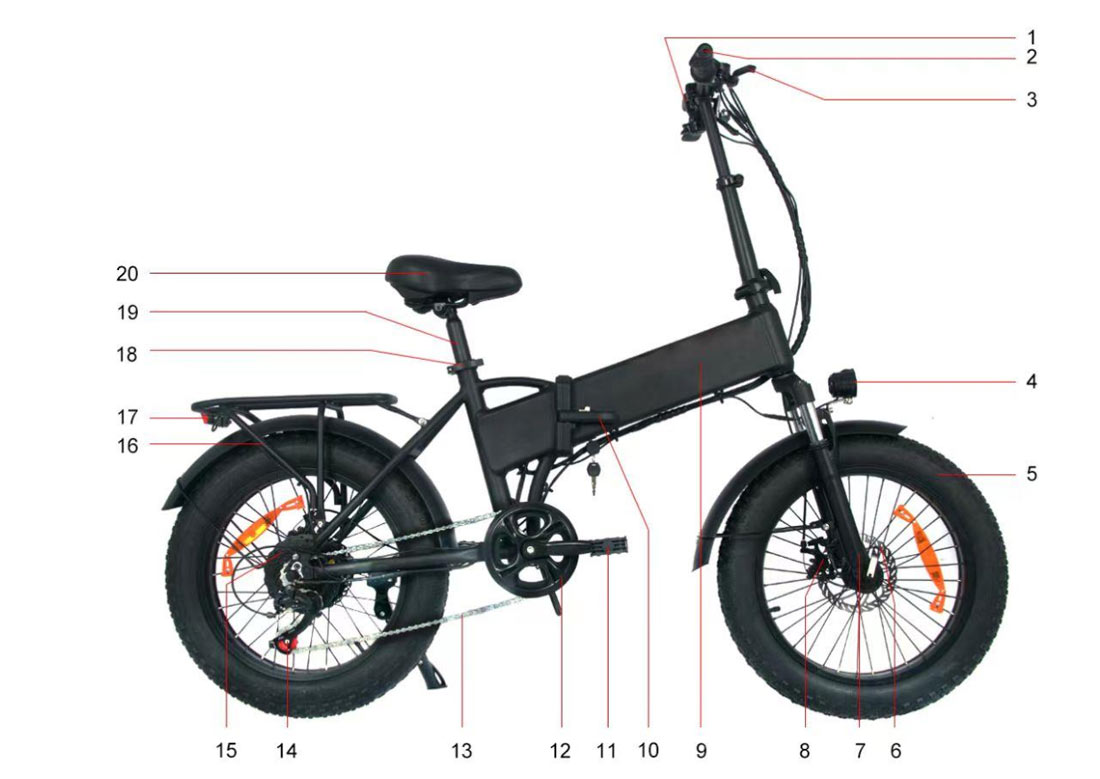

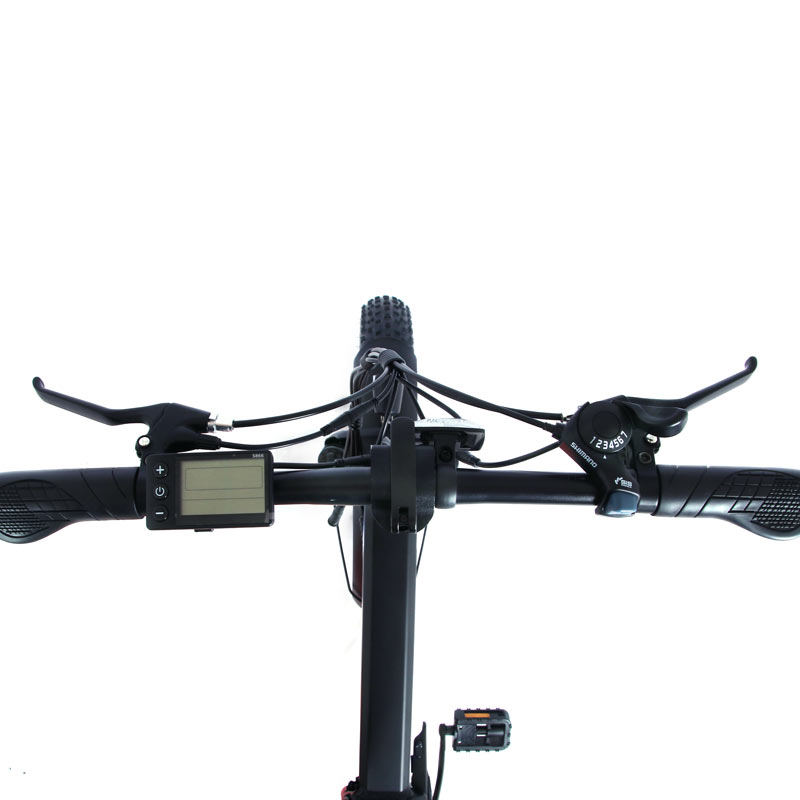

1.Display
2 Handlebars
3 Brake levers

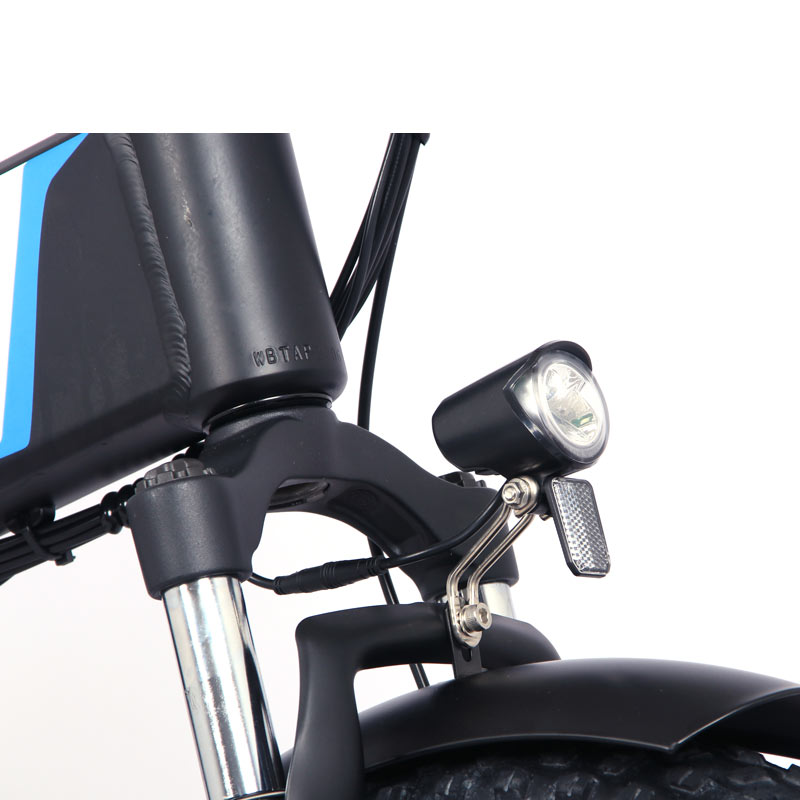

4 Front light
5 Front wheel
6 Disc brake
7 Front fork
8 Disc brake
9 Frame
10 Folding tool
11 Pedal
12 Sprockets
13 Chain
14 Rear derailleur
15 Motor
16 Rear seats

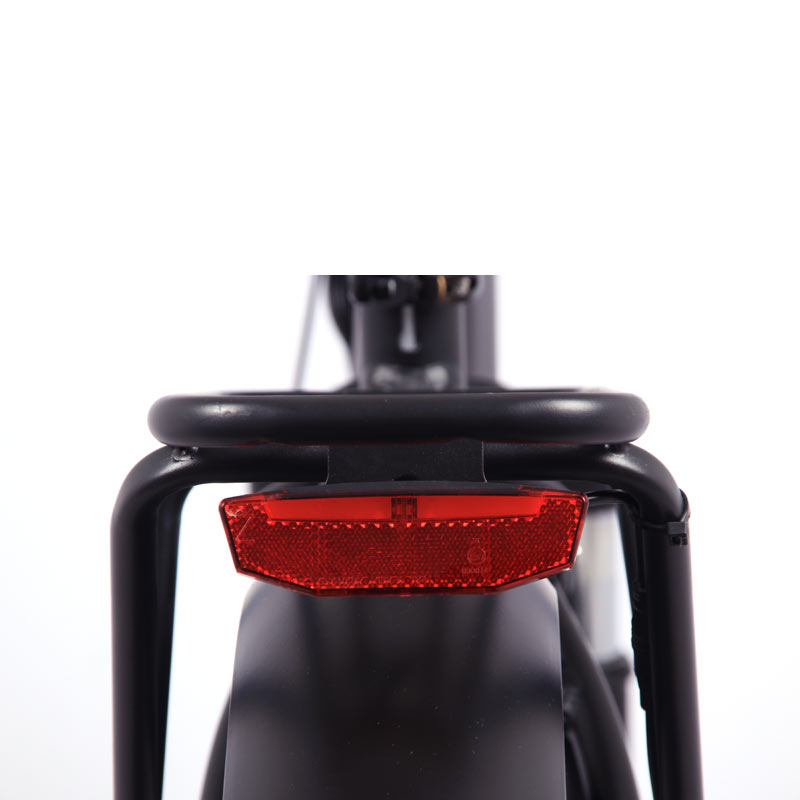

17 Tail light
18 Seat tube clamp
19 Seat tube

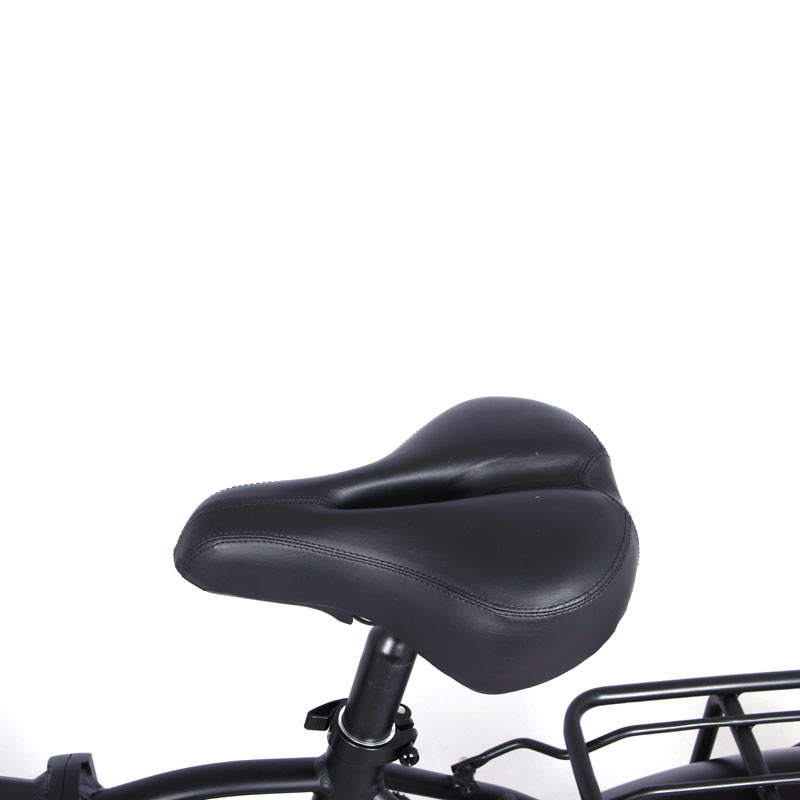

20 Saddle
Note: The product upgrade may cause the actual product you receive to be different from the sample in the photo, please don't worry, the specific functions are the same and will not affect your normal use.
The light foldable ebike for adults is equipped with a 500W high-speed brushless motor, which has a longer lifespan and faster starting speed. The 48V 12Ah removable battery features an energy-saving system, providing longer battery use time. The 5-6 hours of charging time is enough for your daily commute or a day of biking in the mountains.a maximum Slope of 25°.
The Ebike & Assisted bicycle & Normal bike modes offer flexibility for different needs. With the LED smart meter button, it promises a range of 62 miles when riding in pedal-assist or 22-25 miles using throttle only. You can choose the lightweight electric bike folding to enjoy a long time travel or choose the bicycle for exercise. Combining three modes would be a better choice.
This lightweight fold up electric bike comes 90% pre-assembled. The assembly video and user manual are on the product page. lightweight folding electric bicycle weighs 28kg, max load 120kg. If you have any problems with the electric lightweight folding bike for adults, please feel free to contact us.
