This
Fat Tire Mountain eBike is a versatile and rugged electric bicycle designed for outdoor enthusiasts seeking adventure and exploration. With a maximum speed of 25 km/h (15.6 mph), it provides a thrilling riding experience while maintaining safety.
One of its standout features is its impressive mileage capability, offering a maximum range of 35 km (21.8 miles) in electric mode. This extended range allows riders to explore new terrains and cover longer distances with ease. This
fat wheel electric mountain bike
powerful 18650 lithium-ion power battery, boasting a capacity of 17 AH and a rated voltage of 48V, ensures reliable and consistent performance.
When it comes to conquering challenging terrain, this
electric mountain bike with fat tyres
excels with its maximum climbing angle of 25 degrees. This enables riders to tackle steep hills and rough trails without breaking a sweat. The shock-absorbing front fork adds an extra layer of comfort, making rough rides smoother and more enjoyable.
Safety is a top priority, and the
electric fat tyre mountain bike
features front and rear disc brakes for precise and reliable stopping power. With a 7-speed transmission, riders can easily adapt to various riding conditions and terrains, whether it's a steep ascent or a fast descent.
Designed to withstand a range of environmental conditions, the
fat tyre electric mountain bike
operates optimally within a temperature range of -10°C to 45°C (14°F to 113°F). Its waterproof level of IP54 ensures that it can handle light rain and wet conditions, providing peace of mind for riders in unpredictable weather.
This
fat tire e mountain bike
also comes equipped with oversized 26 x 4.0 tires, providing exceptional traction and stability on all types of terrain, from sandy beaches to rocky trails. These fat tires are perfect for maintaining control and confidence while exploring diverse landscapes.
With a charging time of 6.5 to 7 hours, you can quickly recharge the eBike's battery and get back on the trail for your next adventure. Whether you're seeking thrilling downhill rides or epic off-road journeys, this fat tire electric mountain bike is your reliable companion for outdoor exploration.
Outlook&Dimension
Name
|
Specification
|
Parameter:
|
Standard Version
|
Body Material:
|
Steel
|
Color:
|
Black
|
Unfolding Size:
|
1880mm*600mm*1030mm
|
Hub Form:
|
Spoke wheel
|
Wheel Size:
|
26*4.0 inches
|
Package Size:
|
1550mm*310mm*800mm
|
Performance Parameters
Name
|
Specification
|
Gross/Net:
|
35.4kgs/28.9kgs
|
Maximum Load:
|
120kg
|
Maximum Speed:
|
25Km/h(15.6mph)
|
Mileage:
|
35km max rang in electric mode(21.8mile)
|
Maximum Climbing Angle:
|
25 degree
|
Proper Temperature:
|
-10°C-45 °C (14℉-113℉)
|
Waterproof Level:
|
IP54
|
Electrical Specifications
Name
|
Specification
|
Battery Type:
|
18650 lithium ion power battery
|
Battery Capacity:
|
17 AH
|
Battery Rated Voltage:
|
48V
|
Motor Form:
|
Assist mode
|
Motor Type:
|
26'' High speed gear/ Integrated wheel brushless motor
|
Motor Rated No-Load Speed:
|
310±10r/min
|
Charger Output:
|
54.6V 2.0A
|
Charger Input:
|
100~240V 50/60Hz 3.0A
|
Undervoltage Protection Value:
|
39V
|
Overcurrent Protection Value:
|
2.5A±1A
|
Charging Time:
|
6.5-7 hours
|
Features
Name
|
Specification
|
Instrument Display:
|
Multifunctional LCD screen
|
Front Lighting:
|
YES
|
Braking Method:
|
Front disc brake + Rear disc brake
|
Tire Specifications:
|
Pneumatic tires
|
Tire: 26 x4.0
|
Air Valve:26 x4.0, the inner tube valve is AV
|
Front Fork:
|
Shock absorbing front fork
|
Gear:
|
7 Speeds transmission
|
Remarks:The factors, including battery power capacity, load, tire pressure, road conditions, chain and lubrication between wheel and axle, etc.will affect the maximum speed; the cruising distance indicated in this manual file is the test result from the riding test conducted uninterruptedly with load of 60kg(132lbs), at the speed of 15-25km/h (9.3-20mile/h for US), and on the flat and hardened road surface, from full charge to full power consumption.; Driving habits, temperature,load, tire pressure, road condition and other factors will affect the actual cruising distance.

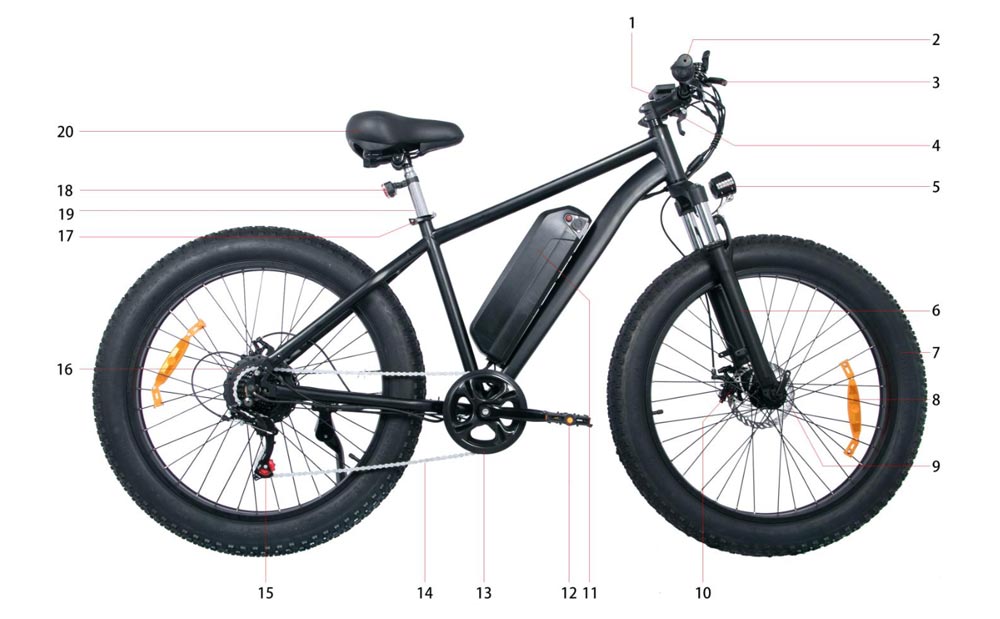

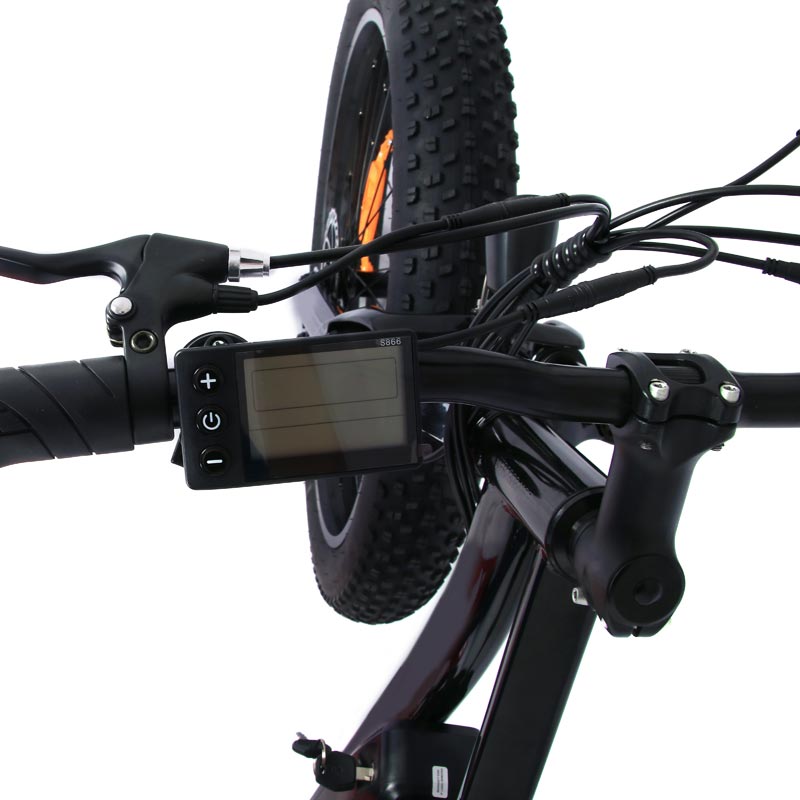

1.Display
|
2.Handbar
|
3.Break bar
|
4.Riser
|

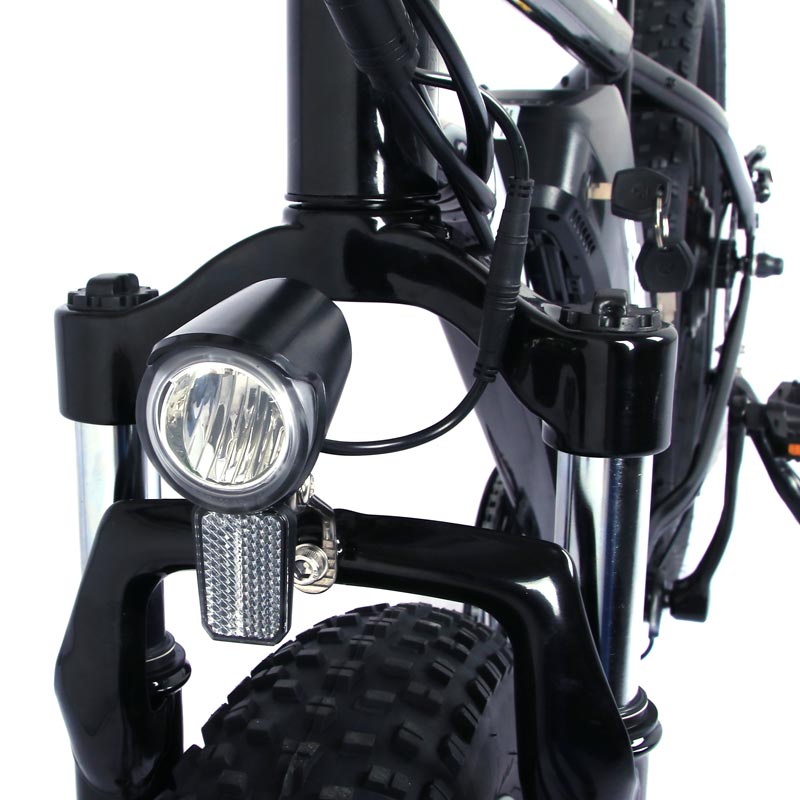

5.Front light
|
6.Front fork
|
7.Wheel
|
8.Wheel reflector
|

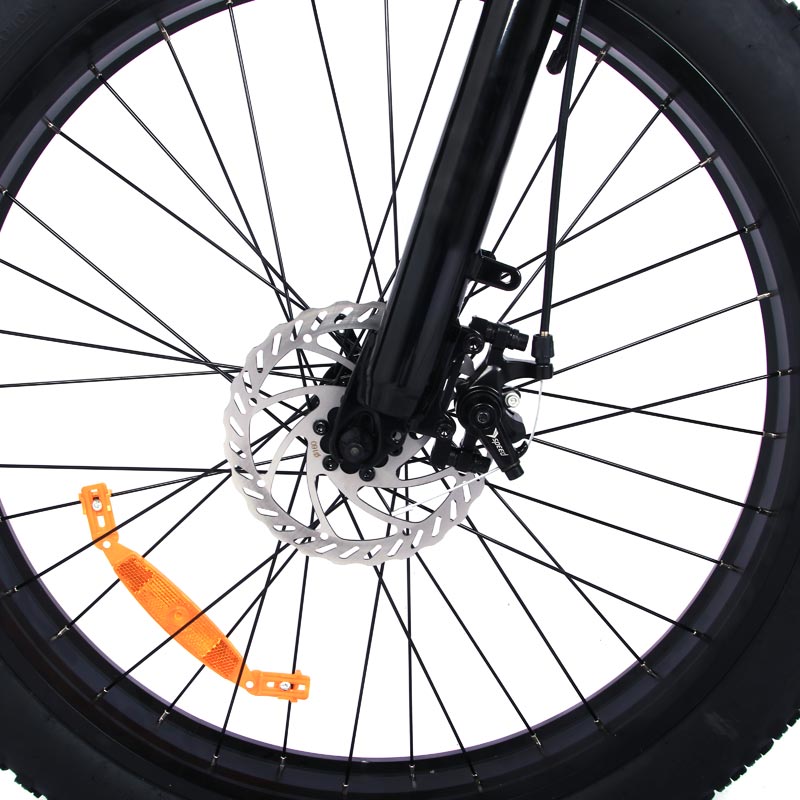

9.Brakes disc pad
|
10.Brakes disc
|
11.battery
|

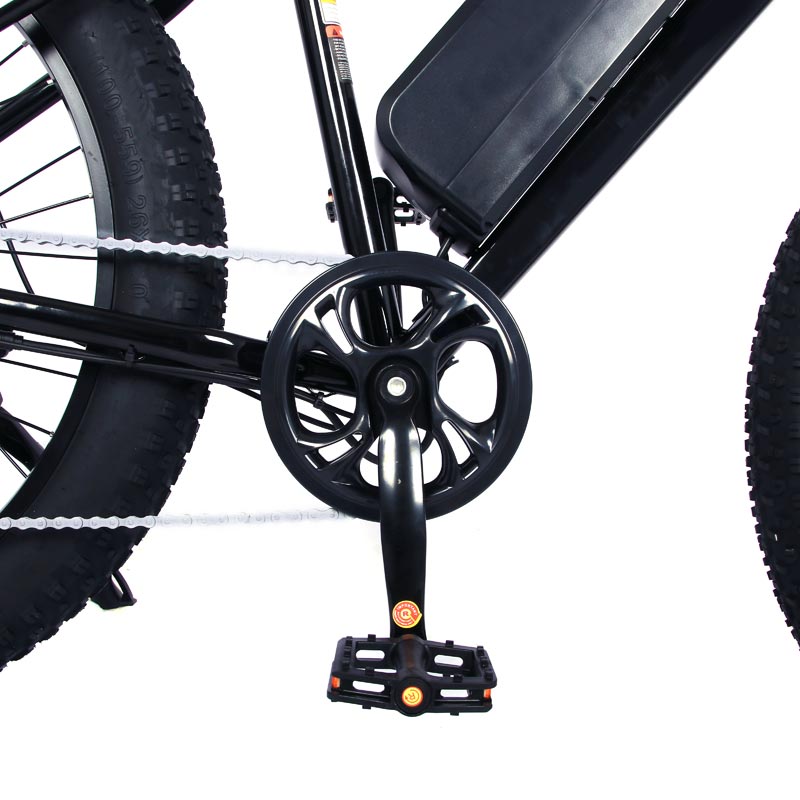

12.Pedal
|
13.Sprocket
|
14.chain
|

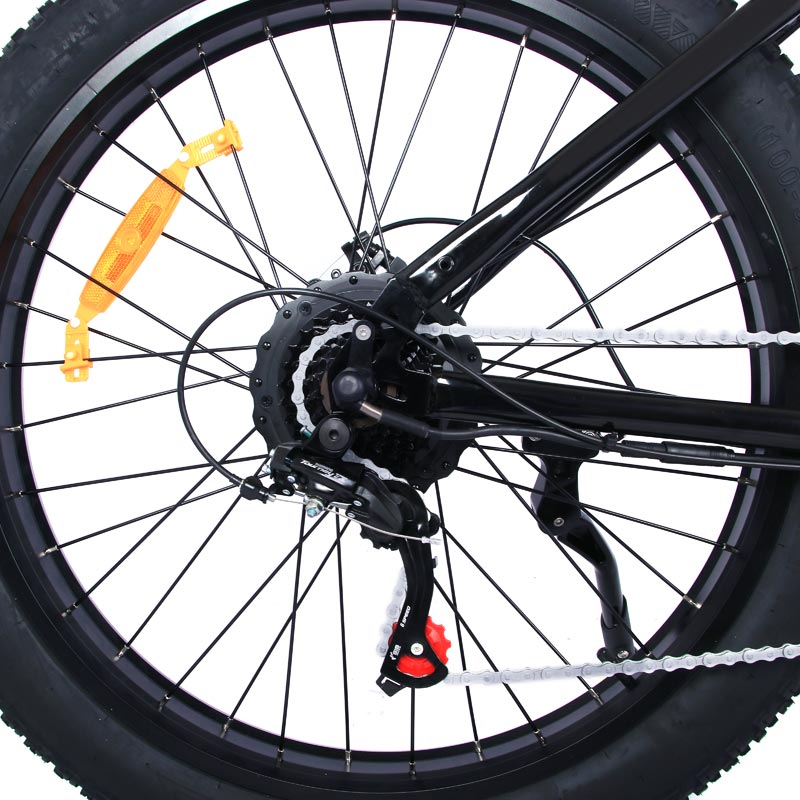

15.Rear derailleur
|
16.Motor Flywheel
|
17.Seat tube clamp
|
18.Tail light
|
19.Seat tube
|

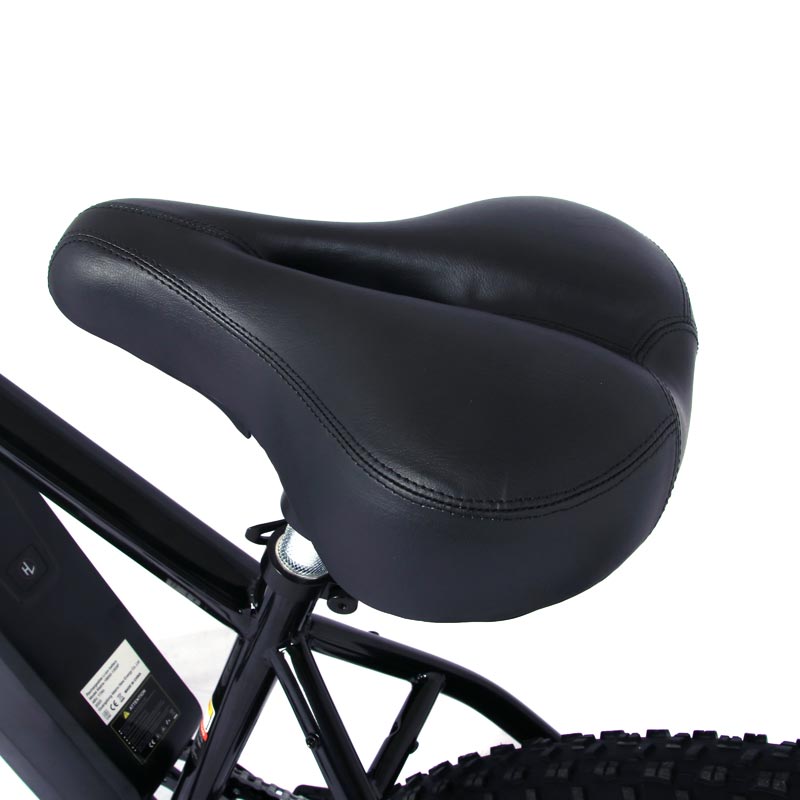

20.Saddle
|

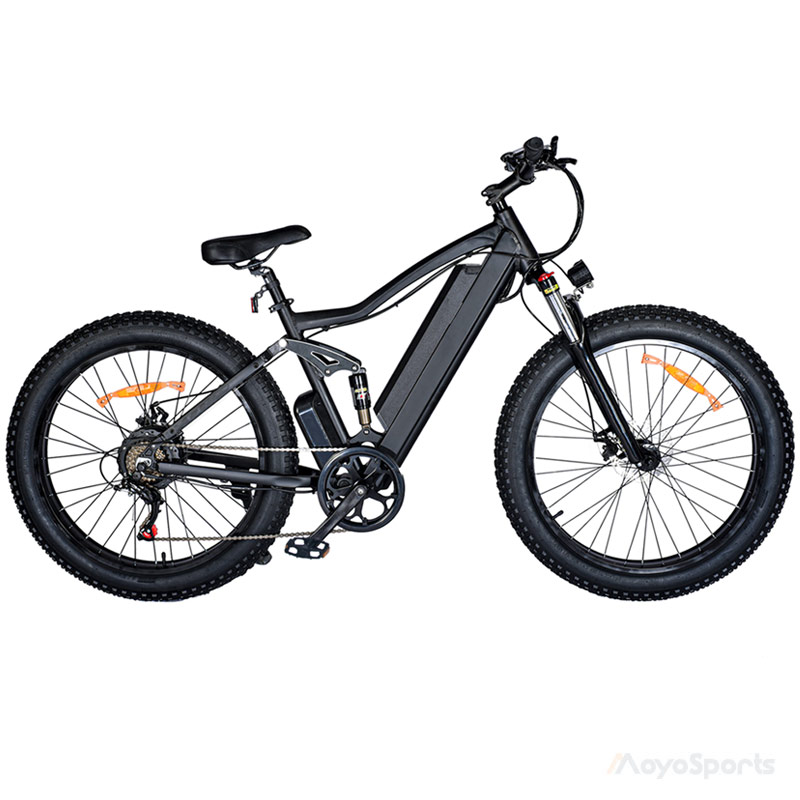

This
full suspension fat tire ebike combines the best of two worlds: the robustness of fat tires and the comfort of full suspension. With its oversized, knobby tires, it effortlessly conquers rough terrains, sand, snow, and rocky trails, providing exceptional traction and stability.
The full suspension system, consisting of front and rear shocks, ensures a smooth and comfortable ride even on the roughest trails. It absorbs shocks and impacts, keeping the rider in control and minimizing fatigue.
Powered by an electric motor, this
full suspension electric fat bike adds an extra layer of excitement to your outdoor adventures. The pedal-assist mode lets you conquer steep inclines with ease, and the throttle mode allows for effortless cruising. The battery provides ample range, allowing you to explore the wilderness without worrying about running out of power.
Whether you're a seasoned mountain biker or a novice looking for thrilling outdoor experiences, a
fat tire full suspension ebike offers versatility, comfort, and power, making it the ideal choice for those seeking adventure on two wheels.
