Hybrid mode of "human+power" for Urban Electric Bicycle.t is more powerful with riding plus power up mode, which brings better ridingexperience to cyclists.
The Urban Electric Bicycle is a versatile and efficient mode of transportation designed to meet the demands of urban commuters and outdoor enthusiasts alike. With a maximum load capacity of 120kg, this electric bicycle is suitable for a wide range of riders.
1. Maximum Speed: The Urban Electric Bicycle offers two maximum speed options - 25Km/h (15.6mph) and 32Km/h (20mph), allowing you to choose the pace that suits your needs.
2. Impressive Mileage: In electric mode, this urban commuting e bike can cover a distance of up to 35 Km (21.9 miles) on a single charge, making it an ideal choice for daily commutes and leisure rides.
3. Excellent Climbing Ability: With a maximum climbing angle of 25 degrees, this electric bicycle can effortlessly handle hilly terrain, ensuring a smooth and comfortable ride.
4. Wide Temperature Range: The bicycle is designed to operate effectively in temperatures ranging from -10°C to 45°C, making it suitable for various weather conditions.
5. Waterproof Design: Featuring an IP54 waterproof rating, this bicycle is resilient against light rain and splashes, enhancing its durability and longevity.
6. High-Capacity Battery: Powered by a 14.4AH 18650 lithium-ion power battery, the bicycle provides reliable and long-lasting performance.
7. Efficient Motor: The 250W brushless motor, in assist mode, offers seamless power assistance for your rides, while the integrated wheel design ensures a smooth and quiet operation.
8. Quick Charging: The included charger has an output of 42V 2.0A, and it's compatible with standard power inputs (100~240V 50/60Hz 3.0A). The bicycle can be fully charged in 6.5 to 7 hours.
9. Durable Tires: Equipped with 26x2.35-inch tires, this bicycle provides a comfortable and stable riding experience, whether on city streets or off-road trails.

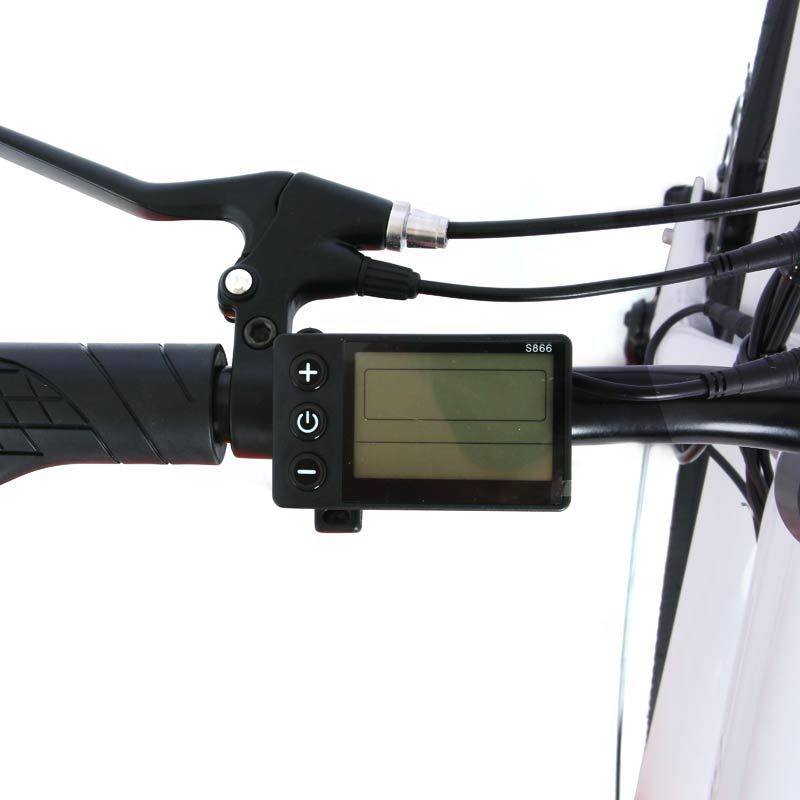

10. Multifunctional LCD Display: Stay informed about your speed, battery level, and more with the integrated LCD screen on the handlebars.

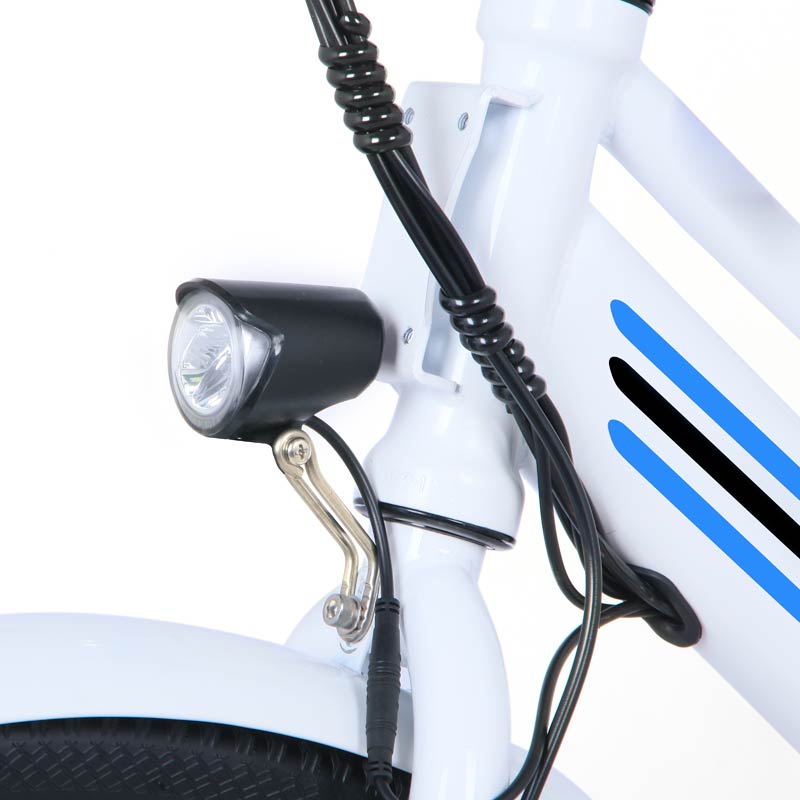

11. Enhanced Safety: The bicycle features front and rear disc brakes for reliable stopping power, along with front lighting for improved visibility in low-light conditions.
12. Suspension Front Fork: A suspension front fork enhances ride comfort by absorbing shocks and bumps on rough terrain.
13. Versatile Gearing: With 7-speed gear options, you can easily adjust your riding speed and effort to match different riding conditions.
The urban city electric bike combines performance, versatility, and durability to offer a practical and enjoyable commuting and recreational experience. Whether you're navigating city streets or exploring scenic routes, this electric bicycle is designed to meet your needs and deliver a smooth and efficient ride.
Outlook&Dimension
Name
Specification
Parameter:
Standard Version
Body Material:
Iron
Color:
Black/White
Unfolding Size:
1830mm*600mm*1200mm
Hub Form:
Wire spoke wheel
Wheel Size:
26 inches
Package Size:
1600mm*240mm*770mm
Performance Parameters
Name
Specification
Gross/Net:
31.2kgs/24.8kgs
Maximum Load:
120kg
Maximum Speed:
25Km/h（15.6mph）32Km/h（20mph）
Mileage:
≦35 Km(21.9mile)in electric mode
Maximum Climbing Angle:
25 degree
Proper Temperature:
-10°C-45 °C
Waterproof Level:
IP54
Electrical Specifications
Name
Specification
Battery Type:
18650 lithium ion power battery
Battery Capacity:
14.4AH
Battery Rated Voltage:
36V
Motor Rated Power:
250W
Motor Form:
Assist mode
Motor Type:
26 inch/high speed gear/ Integrated wheel brushless motor
Motor Rated No-Load Speed:
310±10r/min
Charger Output:
42V 2.0A
Charger Input:
100~240V 50/60Hz 3.0A
Undervoltage Protection Value:
29V±1V
Overcurrent Protection Value:
15A±1A
Charging Time:
6.5~7 hours
Features
Name
Specification
Instrument Display:
Multifunctional LCD screen
Front Lighting:
YES
Braking Method:
Front disc brake + Rear disc brake
Tire Specifications:
Pneumatic tires
Tire: 26x2.35
Air Valve:26x2.35 The inner tube valve is AV
Front Fork:
Suspension front fork
Gear:
7 speed
Remarks:The factors, including Battery power capacity, load, tire pressure, road conditions, chain and lubrication between wheel and axle, etc.will affect the maximum speed; the cruising distance indicated in this manual file is the test result from the riding test conducted uninterruptedly with load of 60kg(132lbs), at the speed of 15-25km/h(9.38- 15.63mph), and on the flat and hardened road surface, from full charge to full power consumption.; Driving habits,temperature, load, tire pressure, road condition and other factors will affect the actual cruising distance.
